Features

  • Lower extension & Powerful bass, excellent transient character!
  • Very excellent fidelity in mid-high range, a perfect and authentic 2-way Hi-Fi system！
  • Perfect line source, very good stereo quality！
  • Very high dynamic range, easy to handle high-volume music and no afraid of speakers' damage！
  • Small size & Great power!
BS-1R only has 23L internal volume, but it has much greater bass quality when compared with other boxes with the same dimension!

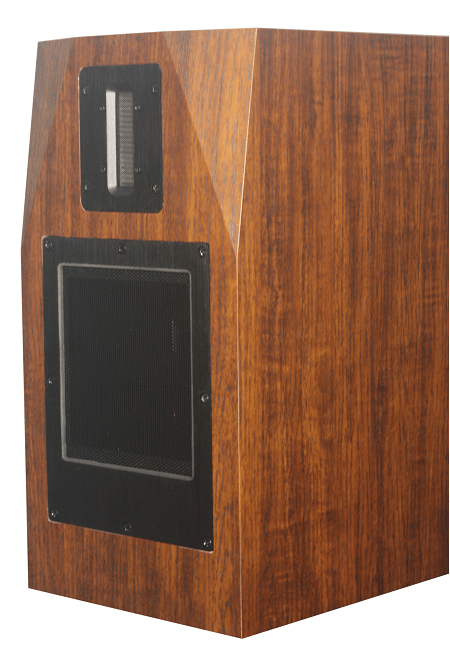

BS-1R Bookshelf Cabinet

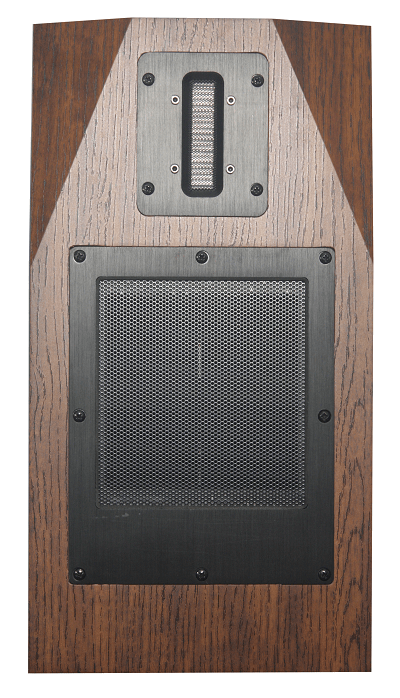

BS-1R HiFi Reflex Bookshelf Box BS-1R HiFi Reflex Bookshelf Box

RETAIL PRICE: 760 USD/PAIR

Transportation method: International air express delivery(DHL, FEDEX, etc.).
Shipping fee: charged based on real time price.

SPECIFICATIONS

TWEETERCQ66 NEW TYPE RIBBON TWEETER
WOOFERDDQ5-2 NEW TYPE SUPER WOOFER
BOX TYPEREFLEX BOX & INTERNAL VOLUME 23L
DIMENSION21cm(Width)*40cm(Height)*39.6cm(Depth)
TUBE LENGTH20cm
NET WEIGHTAbout 10 kg per item
FREQ RESPONSE45 – 40000Hz(-3dB) 38Hz(-6dB)
SENSITIVITY86dB/1m * 1W
NOMINAL IMPEDANCE8 ohms
RATED POWER60W
CROSSOVER DETAIL2-Way, 1600Hz, -12dB/Oct

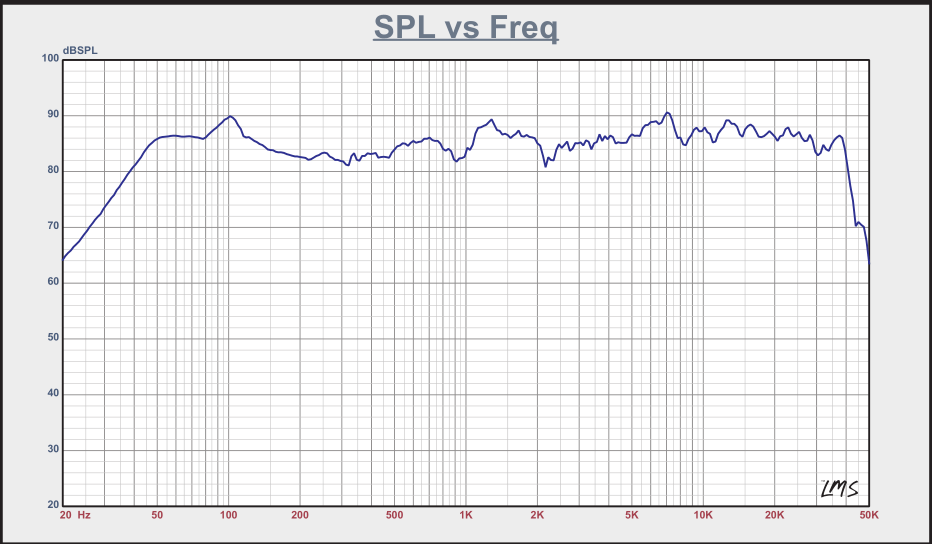

BS-1R LMS SPL CURVE

BS-1R_SPL
Note: This curve was obtained from a normal room(not professional anechoic room).We use near-field method(measure distance 10cm, the sensitivity has been decreased) due to the reflection of the room.

Related Downloads:

  • CABINET DRAWING(CAD Format)
  • CABINET DRAWING(PDF Format)
  • CQ66 Test Report from the Voice Coil 2016 May issue(PDF format)
