BZ-1 Bookshelf Cabinet adopts 'DDQ5-2' as its woofer unit. The three letters 'DDQ' are the acronym of the Chinese Pinyin -- “Duolian-Duicheng-Qudong” and in English 'DDQ' means "Multi-Folded Series and Symmetrical Driving Technology". This is BoZhen New Audio Lab's newly milestone invention after many years of hard work, persistent endeavor and countless failures. It has a unique symmetrical structure which is inspired by the principle of producing sound of the AMT tweeter. Fig.1 shows the main structure of DDQ:

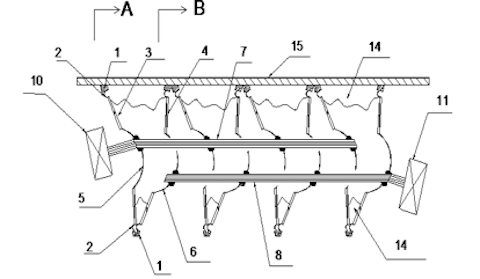

Fig.1 DDQ's main structure

DDQ has similar mechanism in producing sound with AMT at first glance. They both produce sound by pulling and pushing air. The most difference is that the DDQ does this by the symmetrically set of two drivers and several 'V' type structures and two adjacent cones(driven separately by the two drivers) in every 'V' type structure but AMT does this by the adjacent voice coils printed in the middle of wave-shape diaphragm. See Fig.2 for the comparison of the two methods:

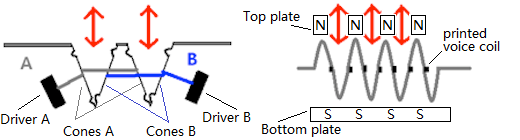

Fig.2 DDQ（Left）'s driving mechanism compares with AMT（Right）'s driving mechanism

Compared with traditional woofers, the 'DDQ' type has several advantages:

• Symmetrical Driving -- Less Reacting Force & More ClarityThe two drivers set on the two ends of DDQ drive the adjacent cones in opposite direction, this makes its overall reacting force nearly zero. However the traditional woofer will have great reacting force under high power input, thus traditional woofers(especially in large calibre) need thicker front panel and side panels otherwise the reacting force will cause non-negligible sound pollution. The good thing is that the DDQ doesn't need these measures and even under high power input condition the DDQ's bass performance doesn't only have great energy but also impresses you greatly with its clarity, good feeling of hierarchy and very good transiency!
• SPL Nearly Flat at F0 & High Radiation Resistance Over Low Frequency RangeThe DDQ's sounding structure has several cones so it has greater radiation dimension. Moreover these cones are set in several 'V' type structures and the adjacent cones motion in opposite direction so it has a degree of compression ratio and greater 'Volume Velocity' as well. All this advantages make it has greater radiation resistance under 100Hz and no fall at F0(better yet, it even has some raise at F0). However all of the traditional woofers have a certain degree of fall at F0 according to the calibre dimension. For example: usually at F0 point, the 6.5-inch woofers fall about 8dB(or even worse), 8-inch woofers fall about 5dB(or even worse), 10-inch woofers fall about 4dB(or even worse). As we know that 3dB means two times in power and 6dB means four times in power！
• Smaller Equivalent Volume and yet Greater EnergyDDQ adopts several 'V' type structures to hold those sounding cones so its dimension is not so big as you may imagine. The dimension of its front panel is just half-size of the traditional woofers with the same radiation dimension. More importantly, DDQ's equivalent volume is much less than the traditional woofers' which is only about 33%. So with the same low frequency limit capability the cabinets that adopt DDQ has much smaller size than those adopt the traditional woofers. For example: a small-mid size (about 30L) bookshelf cabinet using DDQ5-2 could give you a bass quality of a larger mid-size reflect-type floor standing cabinet mounted with traditional woofer in same radiation dimension, a mid-size floor standing cabinet(about 70L) using DDQ6.5 could give you a bass quality of a large-size reflect-type floor standing cabinet mounted with traditional woofer in same radiation dimension.

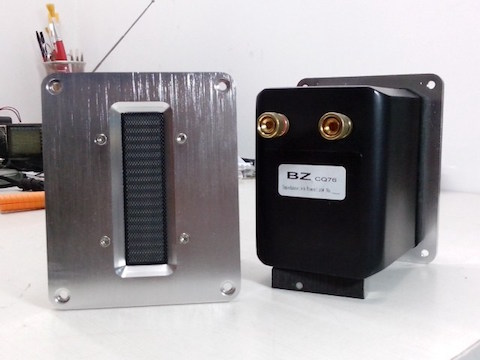

• High Compression RatioDDQ's sounding structures bear great compression-ratio when it is working, its high frequency limit depends on its first-time partition vibration frequency point. Because of this characteristic the DDQ's high frequency limit is much lower than traditional woofers(the latter could work with partition vibration). For example: 'DDQ5-2' works in the range of 42Hz ~ 1600Hz, DDQ6-2 works in the range of 34Hz ~ 1400Hz, a traditional 8-inch woofer normally could work up to 2000Hz or higher. So the upper limit of DDQ is lower than the traditional woofers. If you want to match DDQ with traditional tweeters(dome, true ribbon, AMT, planar), for the reason that these tweeters' low end always higher than 2000Hz, a 3-way system was recommended(you need a extra mid-range unit). The good news is that we also had developed a new type of ribbon tweeters(CQ76 CQ66) to match with DDQ for they could work in much lower frequency(CQ76 could work below(or equal) 1500Hz and CQ66 could work below(or equal) 1800Hz) than other types of tweeters. Using CQ76 and CQ66 you could build a nothing short of PERFECT 2-way HiFi system.
