Features

  • Lower extension & Powerful bass, excellent transient character!
  • Very excellent fidelity in mid-high range, a perfect and authentic 2-way Hi-Fi system！
  • Perfect line source, very good stereo quality！
  • Very high dynamic range, easy to handle high-volume music and no afraid of speakers' damage！
  • Small size & Great power!
BS-3R reflex box only has 43L internal volume, but it has much greater bass quality when compared with other boxes with the same dimension!

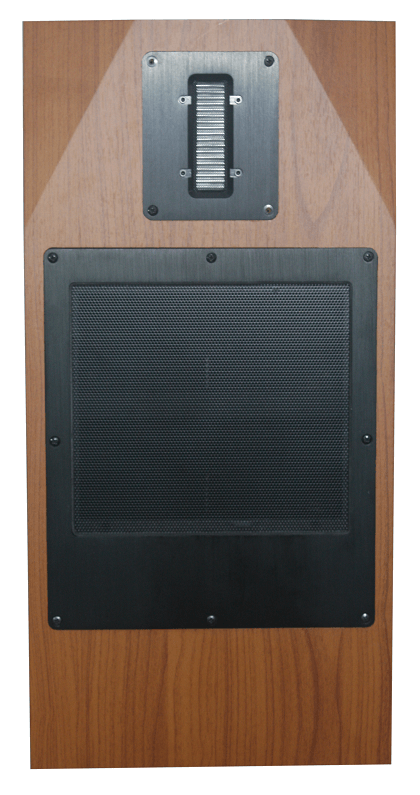

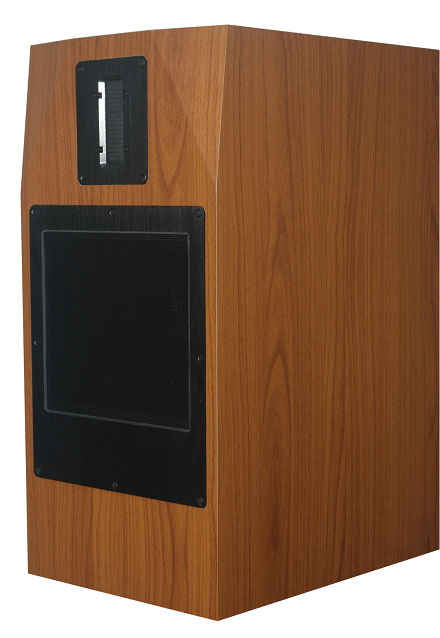

BS-3R Reflex Bookshelf Cabinet

BS-3R HiFi Reflex Bookshelf Box BS-3R HiFi Reflex Bookshelf Box

RETAIL PRICE: 1680 USD/PAIR

Transportation method: International air express delivery(DHL, FEDEX, etc.).
Shipping fee: charged based on real time price.

SPECIFICATIONS

TWEETERCQ76B NEW TYPE RIBBON TWEETER
WOOFERDDQ8-2 NEW TYPE SUPER WOOFER
BOX TYPEREFLEX BOX & INTERNAL VOLUME 43.7L
DIMENSION27cm(Width)*55cm(Height)*40cm(Depth)
TUBE LENGTH21cm
NET WEIGHTAbout 17.3 kg per item
FREQ RESPONSE27 – 28000Hz(-3dB) 21Hz(-6dB)
SENSITIVITY88dB/1m * 1W
NOMINAL IMPEDANCE8 ohms
RATED POWER100W
CROSSOVER DETAIL2-Way, 1000Hz, -12dB/Oct

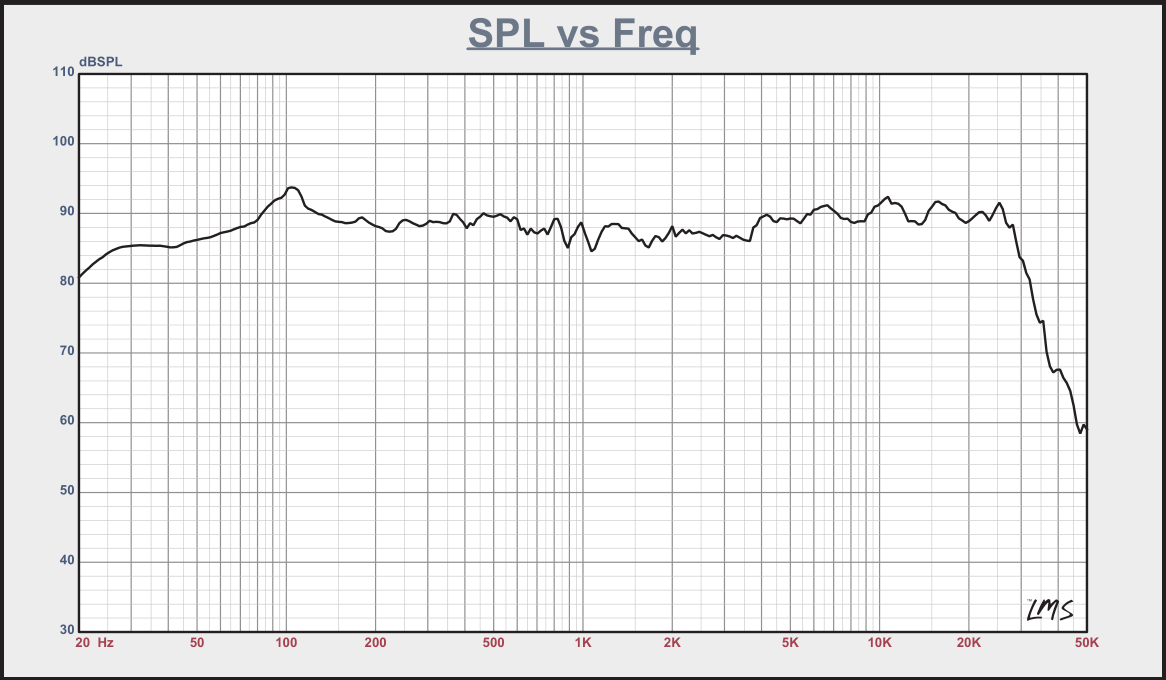

BS-3R LMS SPL CURVE

BZ-2 SPL
Note: This curve was obtained from a normal room(not professional anechoic room).We use near-field method(measure distance 10cm, the sensitivity has been decreased) due to the reflection of the room.

Related Downloads:

  • CABINET DRAWING(CAD Format)
  • CABINET DRAWING(PDF Format)
