This is our first 3-Way 'Floor Standing Reflex' box ---- 'FS-1R'.
Features
- Lower extension(15Hz -3dB) & Powerful bass, excellent transient character!
- Very excellent fidelity in mid-high range, a perfect and authentic 3-way Hi-Fi system！
- Very high dynamic range, easy to handle high-volume music and no afraid of speakers' damage！
- Small size & Great power!
How does it sound like:
it has a vivid&vigorous feeling in the mid-high range;
it has a powerful&clear feeling in the bass range;
it has a wide&clear sound field(even under high volume output);
it sounds like the boxes do not exist and you could tell every pieces of instruments;
in one words, just like the all orchestral band are sitting in front of you!
it has a vivid&vigorous feeling in the mid-high range;
it has a powerful&clear feeling in the bass range;
it has a wide&clear sound field(even under high volume output);
it sounds like the boxes do not exist and you could tell every pieces of instruments;
in one words, just like the all orchestral band are sitting in front of you!

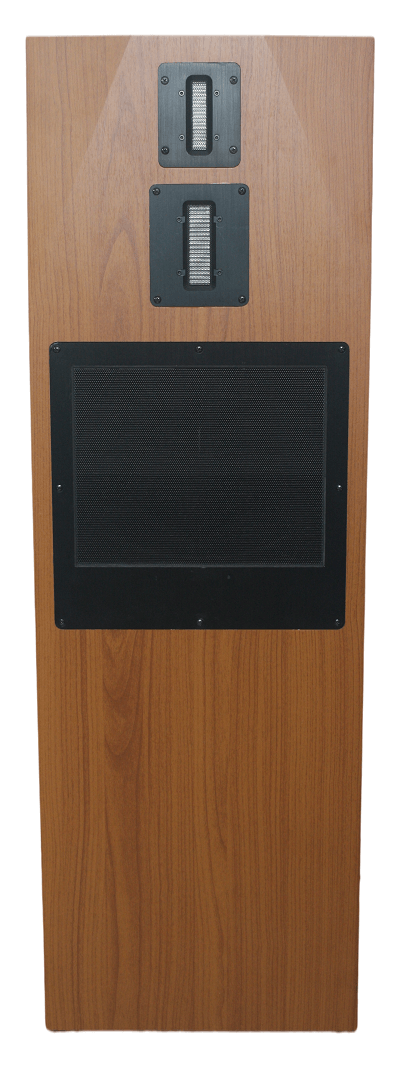

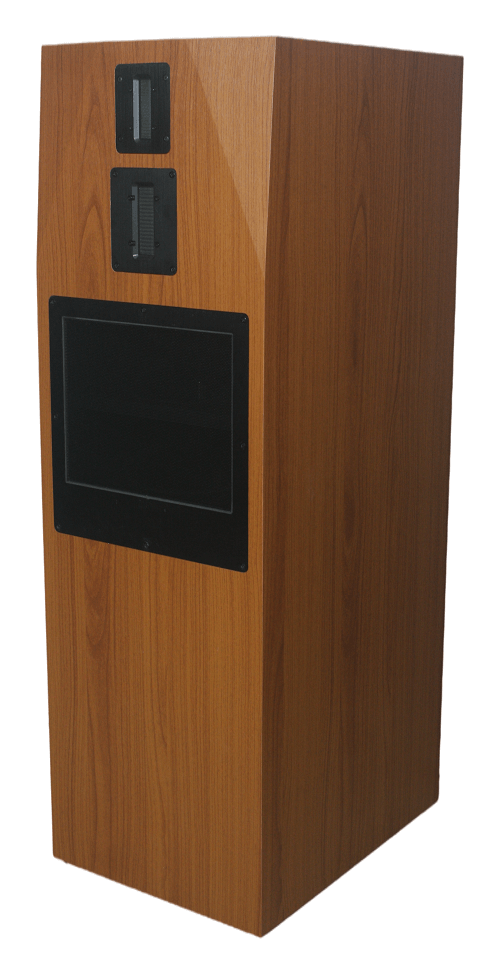

FS-1R Reflex Floor Standing Cabinet
RETAIL PRICE: 2650 USD/PAIR
Transportation method: International air express delivery(DHL, FEDEX, etc.).
Shipping fee: charged based on real time price.
Shipping fee: charged based on real time price.
SPECIFICATIONS
| TWEETER1 | CQ66 NEW TYPE RIBBON TWEETER |
| TWEETER2 | CQ76B NEW TYPE RIBBON TWEETER |
| WOOFER | DDQ10-2 NEW TYPE SUPER WOOFER |
| BOX TYPE | REFLEX BOX & INTERNAL VOLUME 124L |
| DIMENSION | 34cm(Width)*105cm(Height)*45cm(Depth) |
| TUBE LENGTH | 24cm |
| PORT AREA | back ported, 580cm^2 |
| FREQ RESPONSE | 21 – 40000Hz(-3dB) |
| SENSITIVITY | 89dB/1m * 1W |
| NOMINAL IMPEDANCE | 8 ohms |
| RATED POWER | 100W |
| CROSSOVER DETAIL | 3-Way, 1000Hz, 8000Hz |

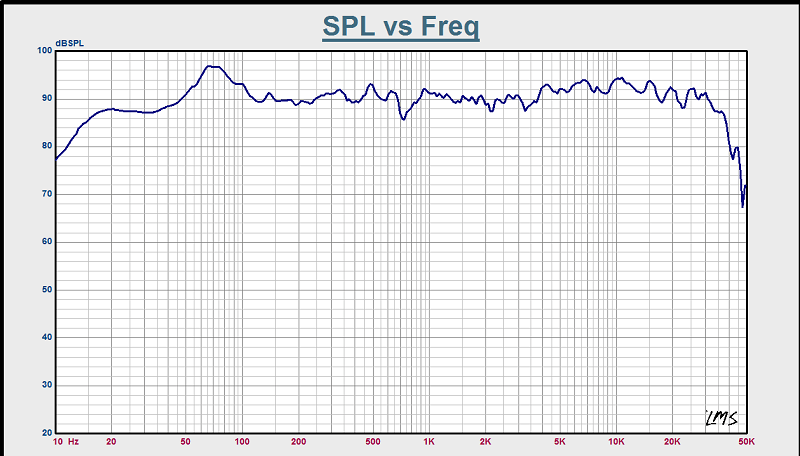

FS-1R LMS SPL CURVE
Note: This curve was obtained from a normal room(not professional anechoic room).We use near-field method(measure distance 10cm, the sensitivity has been decreased) to avoid the reflection of the room.
