Features

  • Lower extension & Powerful bass, excellent transient character!
  • Very excellent fidelity in mid-high range, a perfect and authentic 2-way Hi-Fi system！
  • Perfect line source, very good stereo quality！
  • Very high dynamic range, easy to handle high-volume music and no afraid of speakers' damage！
  • Small size & Great power!
BS-2R reflex box only has 36L internal volume, but it has much greater bass quality when compared with other boxes with the same dimension!

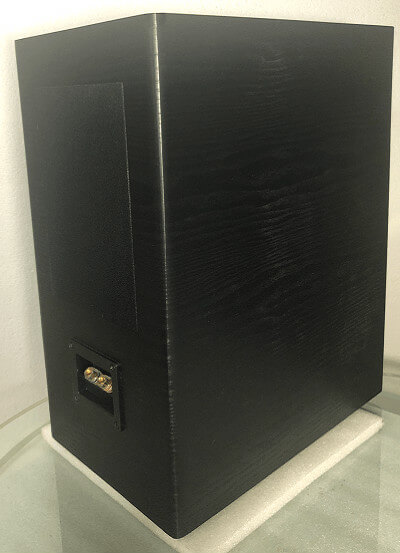

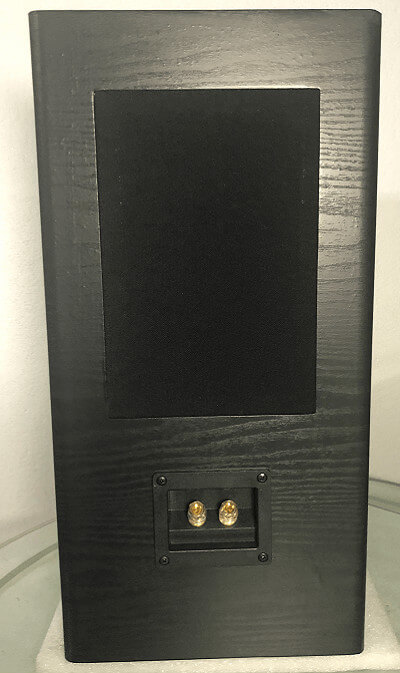

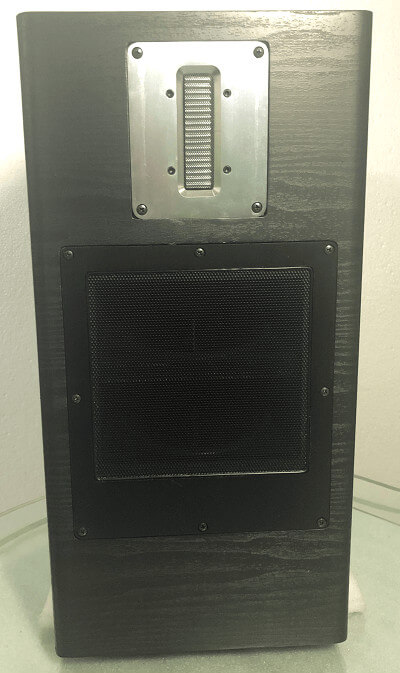

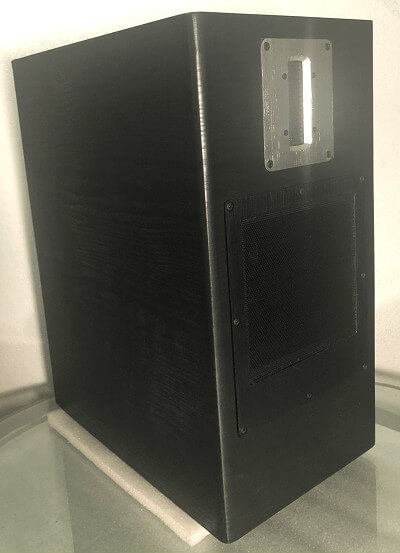

BS-2R Reflex Bookshelf Cabinet

BS-2R HiFi Reflex Bookshelf Box BS-2R HiFi Reflex Bookshelf Box
BS-2R HiFi Reflex Bookshelf Box箱 BS-2R HiFi Reflex Bookshelf Box

RETAIL PRICE: 900 USD/PAIR

Transportation method: International air express delivery(DHL, FEDEX, etc.).
Shipping fee: charged based on real time price.

SPECIFICATIONS

TWEETERCQ76 NEW TYPE RIBBON TWEETER
WOOFERDDQ6-2 NEW TYPE SUPER WOOFER
BOX TYPEREFLEX BOX & INTERNAL VOLUME 36L
DIMENSION25cm(Width)*50cm(Height)*40cm(Depth)
TUBE LENGTH21cm
NET WEIGHTabout 13.7 kg per item
FREQ RESPONSE43 – 32000Hz(-3dB) 35Hz(-6dB)
SENSITIVITY87dB/1m * 1W
NOMINAL IMPEDANCE8 ohms
RATED POWER60W
CROSSOVER DETAIL2-Way, 1500Hz, -12dB/Oct

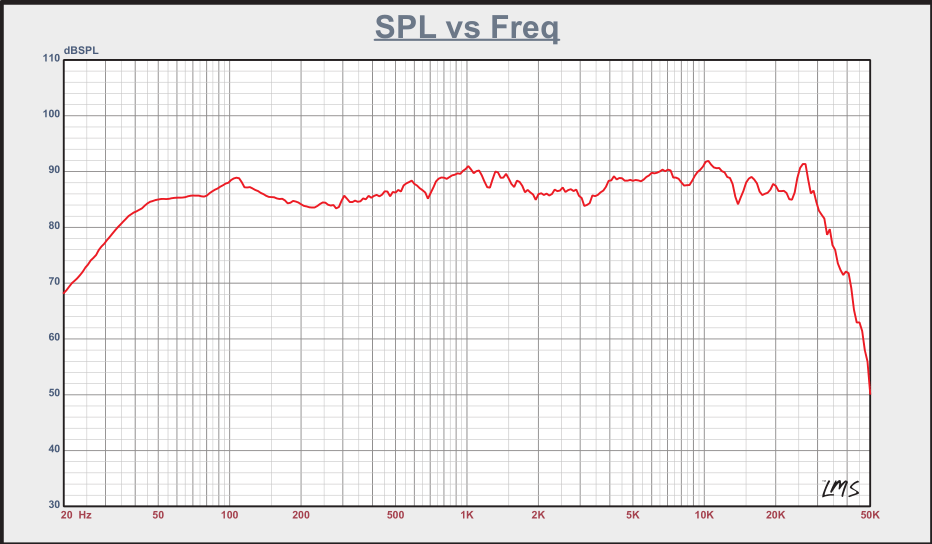

BS-2R LMS SPL CURVE

BZ-2 SPL
Note: This curve was obtained from a normal room(not professional anechoic room).We use near-field method(measure distance 10cm, the sensitivity has been decreased) due to the reflection of the room.

Related Downloads:

  • CABINET DRAWING(CAD Format)
  • CABINET DRAWING(PDF Format)
  • CQ76 Test Report from the Voice Coil 2013 April issue(PDF format)
