Features

  • Lower and powerful bass with excellent transiency!
  • Very excellent fidelity in mid-high range, a perfect and authentic HiFi 2-way system！
  • Perfect linear source, very good stereo quality！
  • Very high dynamic range, easy to handle high-volume music and no afraid of speakers damage！
  • Small size yet high energy！
As a two-way floor-stand cabinet FS-1 just has a volume of only 70L, but its bass performance(energy, transiency, frequency limit etc.) is much better than the big size(100L) floor-stand cabinets mounted with 12-inch woofers!

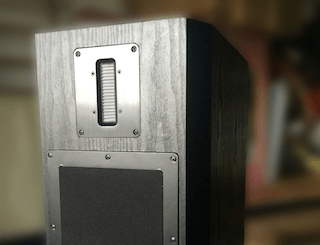

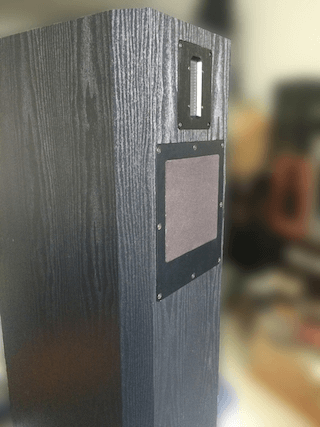

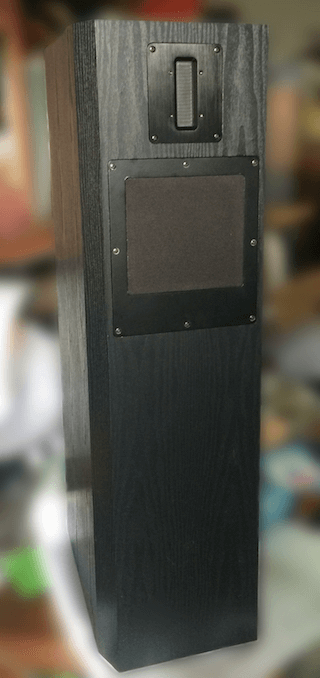

FS-1 Floor-stand Cabinet

BZ-1 HiFi Cabinet BZ-1 HiFi Cabinet
BZ-1 HiFi Cabinet

SPECIFICATIONS

TWEETERCQ76 NEW TYPE RIBBON TWEETER
WOOFERDDQ6-2 NEW TYPE SUPER WOOFER
BOX TYPESEALED BOX & VOLUME ABOUT 70L
DIMENSION27cm(Width)*92cm(Height)*40cm(Depth)
WEIGHTAbout 21.5 kg per item
FREQ RESPONSE40 – 32000Hz， +/-3dB
SENSITIVITY87dB/1m * 1W
NOMINAL IMPEDANCE8 ohms
RATED POWER60W
CROSSOVER DETAIL2-Way Crossover @ 1500Hz, -12dB/Oct

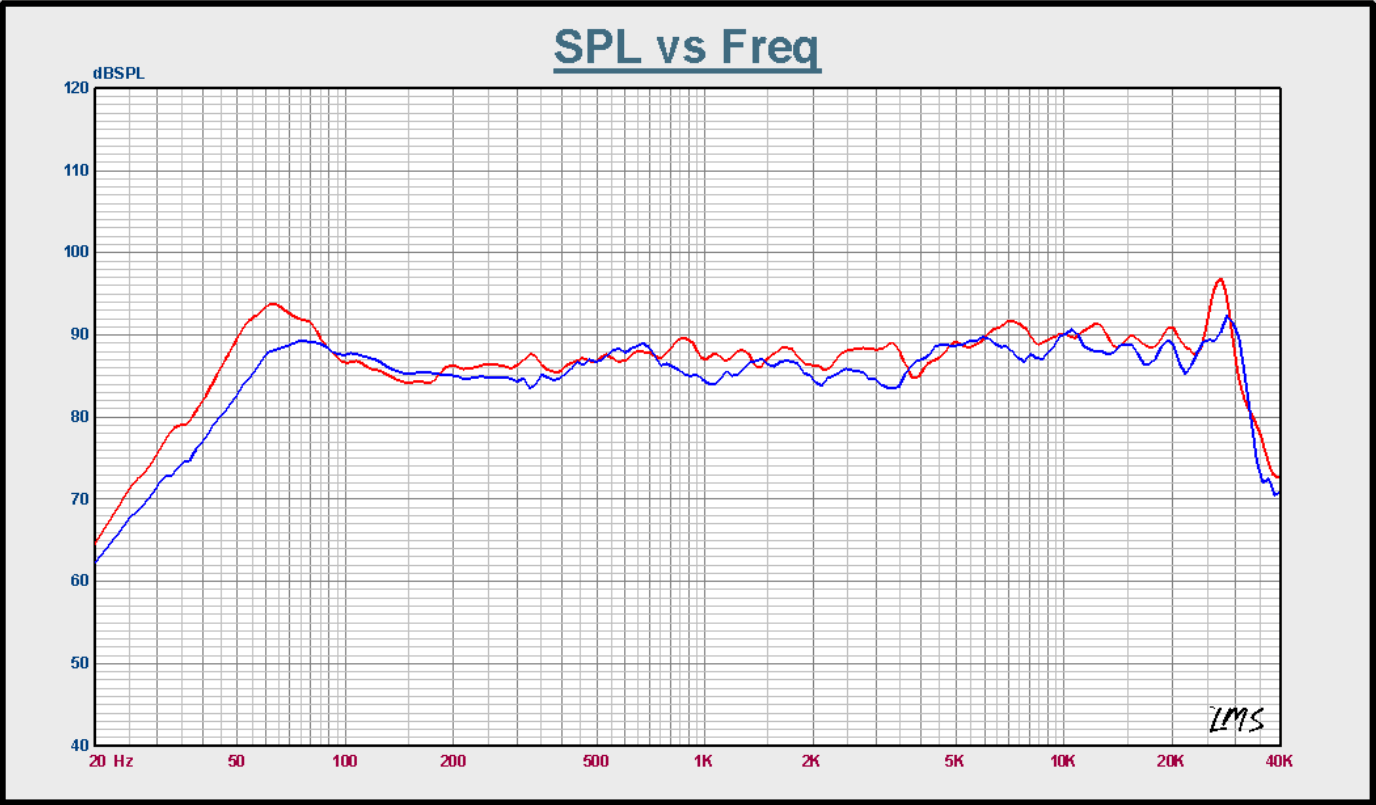

FS-1 LMS SPL CURVE

BZ-2 SPL
Note1: These curves were the comparision of BS-1(tinted blue) and FS-1(tinted red). It shows that FS-1(DDQ6-2) has a better bass performance!
Note2: These curve were obtained from a normal room(not professional anechoic room).We use near-field method(measure distance 10cm, the sensitivity has been decreased) due to the reflection of the room.
