DDQ5-2 New Type AIR MOTION Woofer

2 * 'V' sets, 4 * 5 inch cones

Features:

  • Unique Patented Design
  • Symmetrical Motion Structure Technology
  • Frequency range:      42Hz ~ 1600Hz +/-3dB
  • Sensitivity:                 86dB @ 1 W / 1 m
  • Rated Power:             50VA
  • F0:                             60Hz +/- 10%
  • Impedance:                8 Ohm
  • Dimension:                20.6 * 16.5 * 14 (Height * Width * Depth Unit: cm)
  • Faceplate:                 Brushed Aluminium(black)+metal mask

RETAIL PRICE: $180USD/1PC, $360USD/PAIR

Transportation method: International air express delivery(DHL, FEDEX, etc.).
Shipping fee: charged based on real time price.

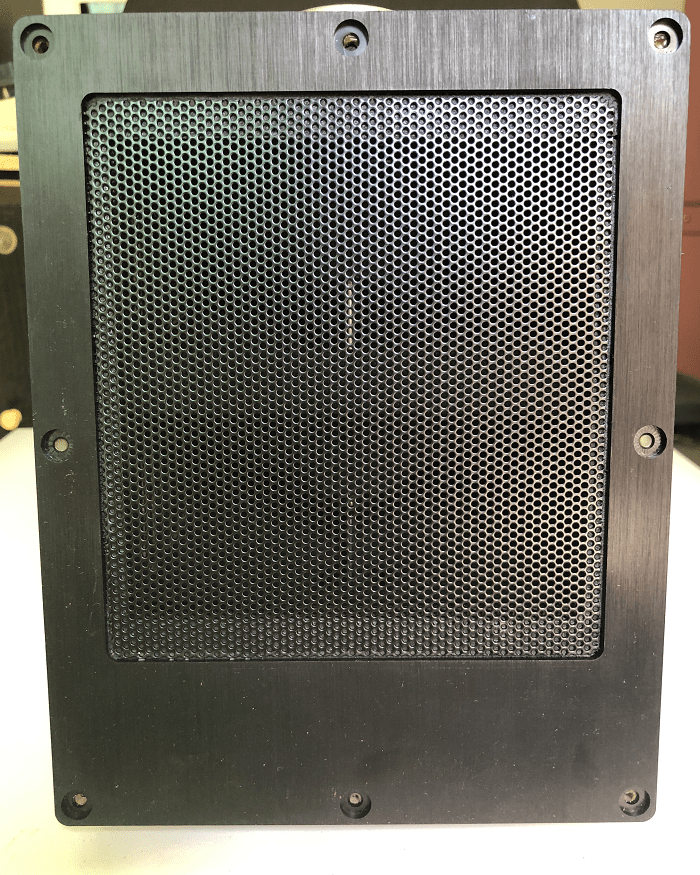

DDQ5-2 Photo

DDQ5-2 woofer

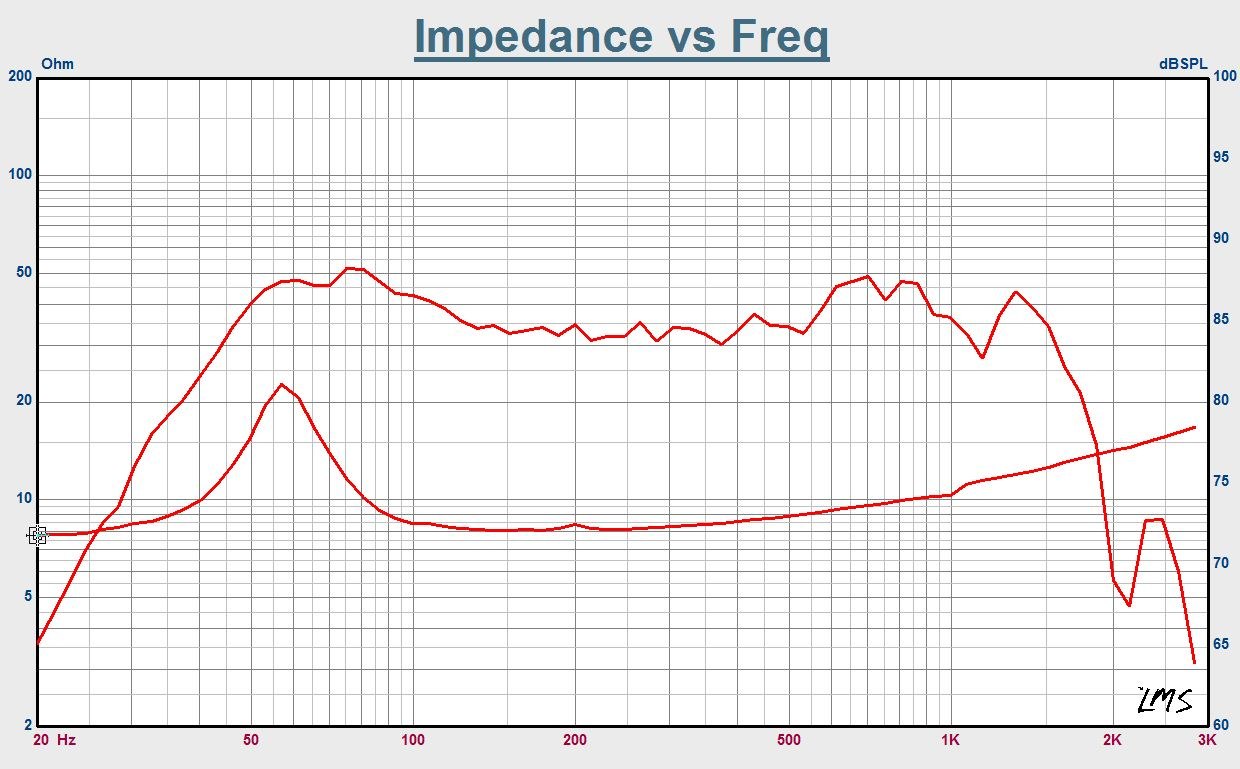

SPL vs IMP

DDQ 4.5-2 splvsimp
Notice：This is a near-field curve(10cm with a magnitude offset post-processing). The measurement environment is a big sealed MDF box(volume is about 400L, 60cm*122cm*55cm, very similar to a infinite baffle). This is an authentic raw data without any smooth processing! Please give extra attention to the performance below 100Hz!

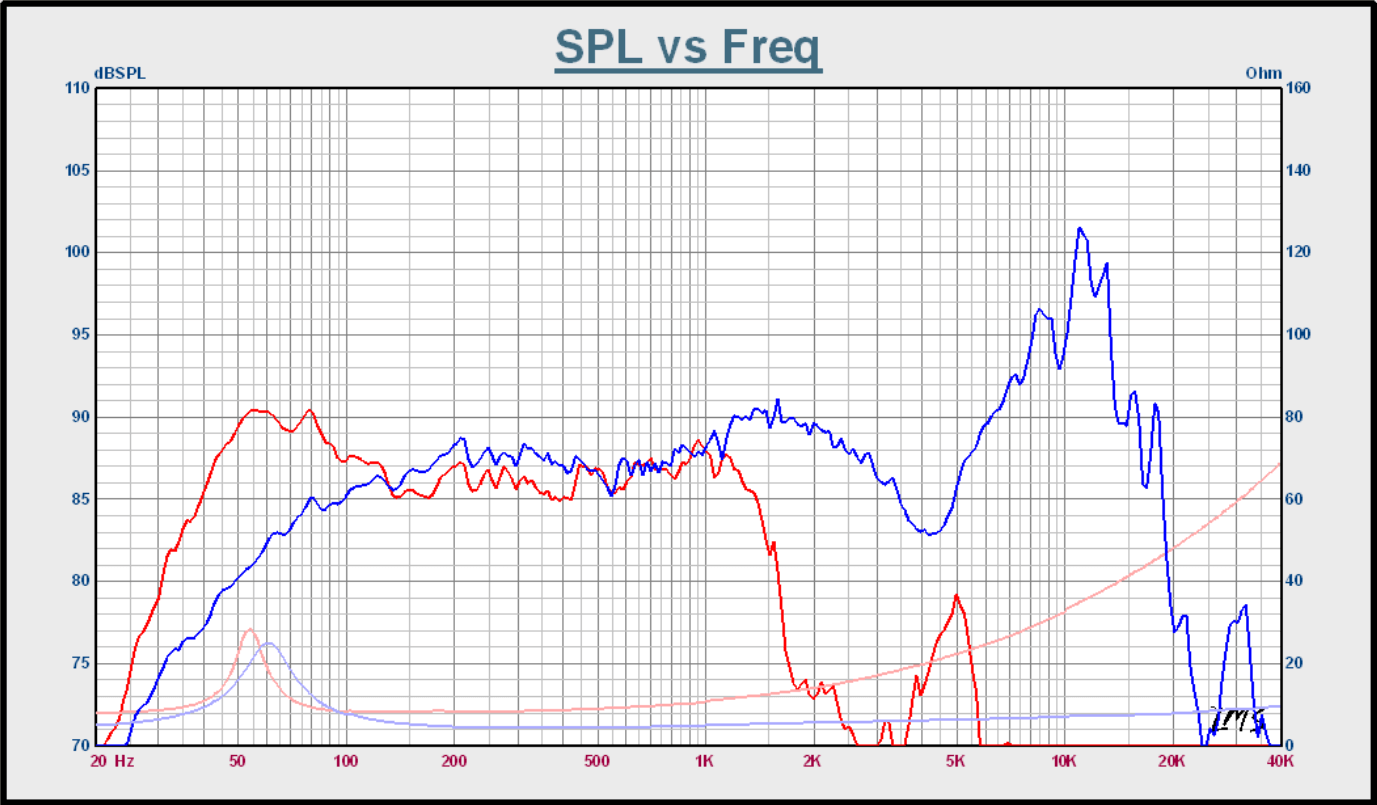

DDQ5-2 vs 5-inch TRADITIONAL WOOFER

DDQ5-2 VS 5-INCH

Notice: DDQ5-2'curve was tinted red & 5-inch woofer's curve was tinted blue, the two bottom curves tinted with light colors were their impedance comparision. They have similar F0 but totally different bass performance below 100Hz! (click pic for large view)

Fig 1. DDQ5-2 SPL(94dB) vs. THD (SoundCheckTM)

Fig 2. 5-inch Woofer SPL(94dB) vs. THD (SoundCheckTM)

Notice: DDQ5-2's THD is much lower than traditional structure 5-inch woofer. At Fs the DDQ5-2's THD is 3.0% but the comparison is 3.7%. At 10Hz the DDQ5-2's THD is 21.7% but the comparison is 64.7%. So DDQ5-2 could give a much better bass quality! DDQ5-2 is very suitalbe for small bookself cabinet.(click for large view)

APPLICATION

  • A 2-way floor-standing or bookshelf HiFi system with CQ76 or CQ66(SACD) tweeter
BZ-1 cabinet
A bookshelf mounted with CQ76 and DDQ5-2(click for more)

RELATED DOWNLOADS

  • DDQ5-2 LMS Library File
  • DDQ5-2 Faceplate Data(CAD format PDF format)
  • DDQ Installation Guide(PDF format)
