DDQ10-2 New Type AIR MOTION Woofer
2 * 'V' sets, 4 * 10-inch cones
Features:
- Unique Patented Design
- Symmetrical Motion Structure Technology
- Frequency range: 21Hz ~ 1100Hz (-3dB)
- Sensitivity: 89dB @ 1 W / 1 m
- Rated Power: 100VA
- F0: 25Hz +/- 10%
- Impedance: 8 Ohm
- Dimension: 29.7 * 30 * 26 (Height * Width * Depth Unit: cm)
- Faceplate: Brushed Aluminium(black)+metal mask
RETAIL PRICE: $385USD/1PC, $770USD/PAIR
Transportation method: International air express delivery(DHL, FEDEX, etc.).
Shipping fee: charged based on real time price.
Shipping fee: charged based on real time price.

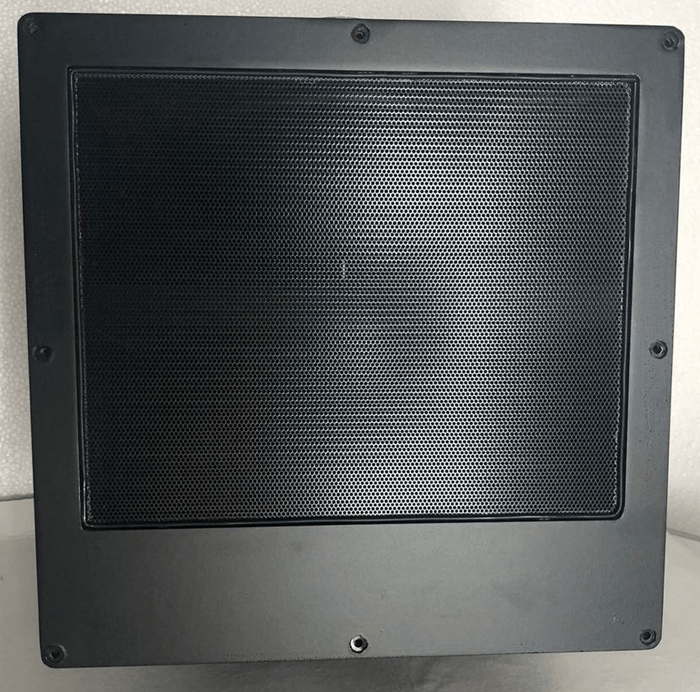

DDQ10-2 Photo

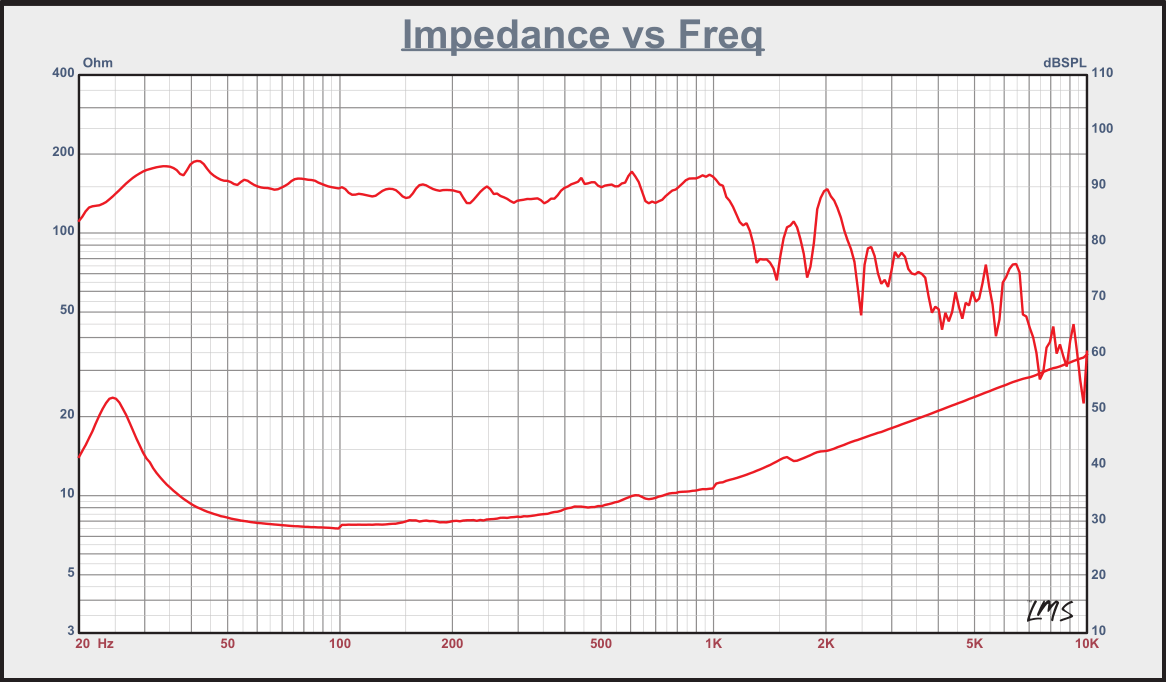

SPL vs IMP
Notice：This is a near-field curve(10cm with a magnitude offset post-processing). The measurement environment is a big sealed MDF box(volume is about 400L, 60cm*122cm*55cm, very similar to a infinite baffle). This is an authentic raw data without any smooth processing! Please give extra attention to the performance below 100Hz!
THD TEST DDQ10-2 vs 12 inch TRADITIONAL WOOFER (condition: 95dB@1KHz)
CLICK THE PICTURE TO ENLARGE
Software: SoundCheck™
Sensitivity: 95dB@1KHz
LEGENDS:
PURPLE curve(Sensitivity, left scale, unit dB)
AQUA curve(THD, right scale, unit percent%)

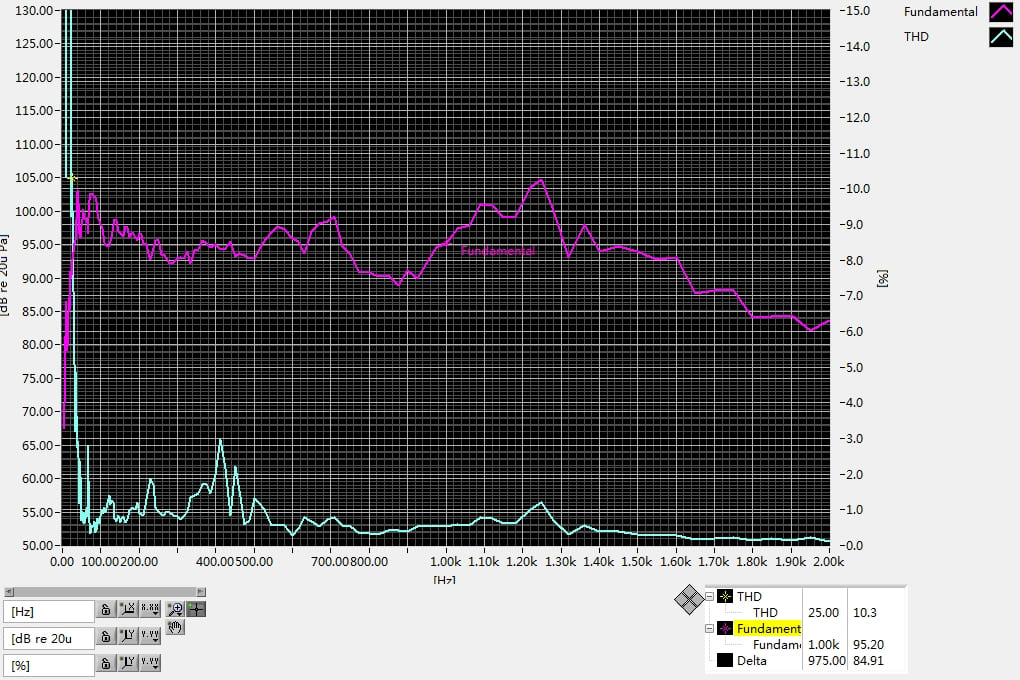

Fig.1 THD curve of 12' woofer(THD: 10.3%@25Hz)

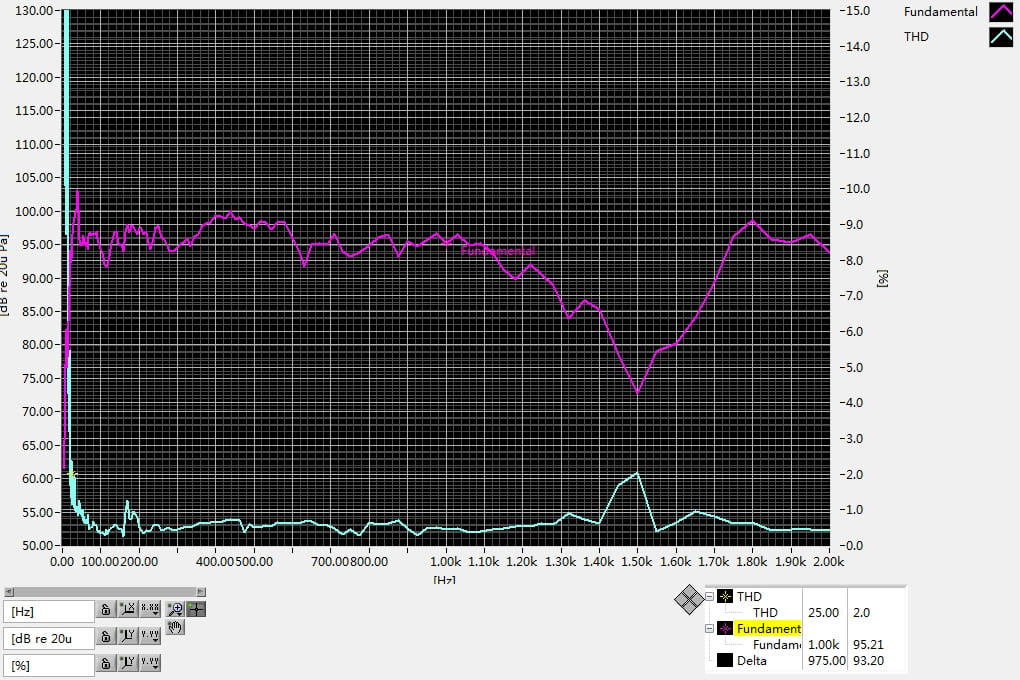

Fig.2 THD curve of DDQ10-2(THD: 2%@25Hz)
Harmonics vs Sensitivity (condition: 95dB@1KHz)
LEGENDS:
RED curve(2nd harmonic, left scale, unit dB)
GREEN curve(3rd harmonic, left scale, unit dB)
WHITE curve(5th harmonic, left scale, unit dB)
PURPLE curve(sensitivity, left scale,unit dB)

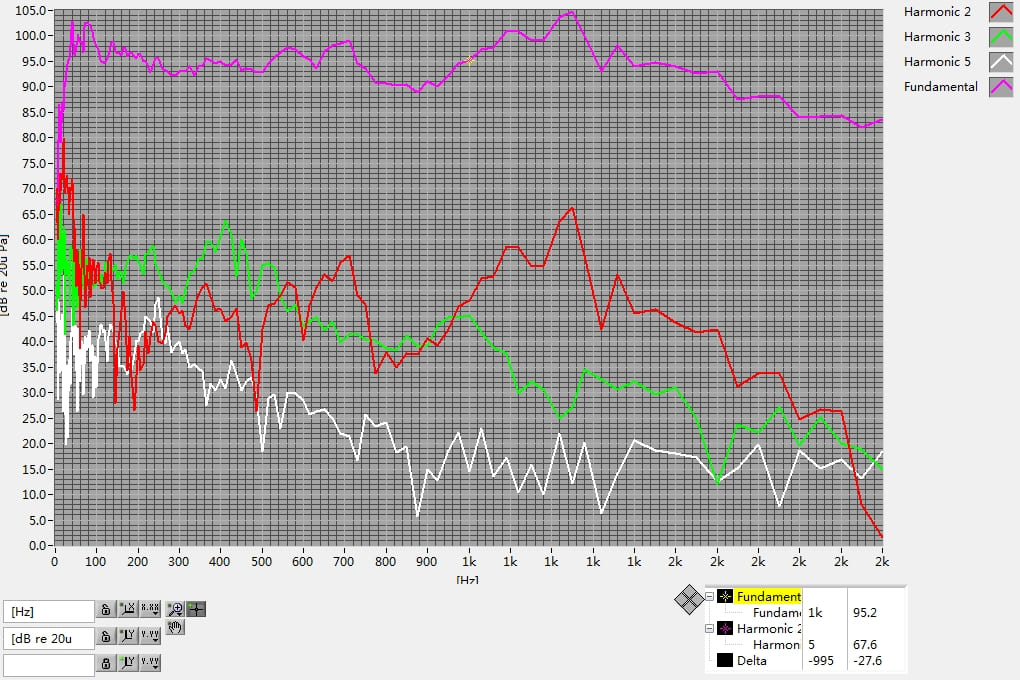

Fig.3 HARMONICS of 12' Woofer(3rd harmonic in 20-400Hz: about 55dB on average)

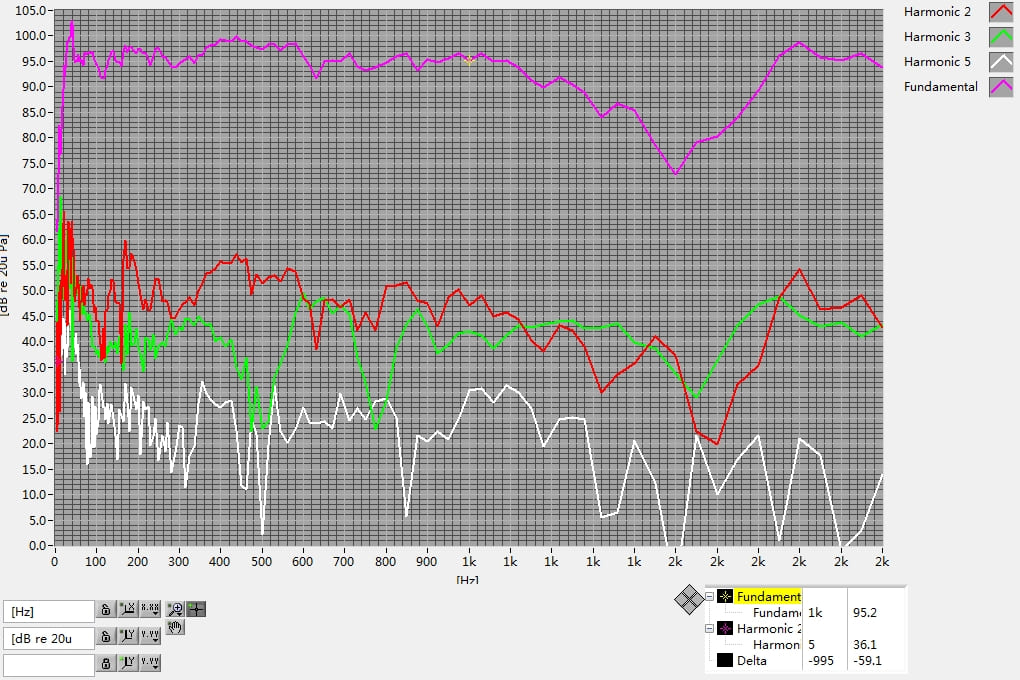

Fig.4 HARMONICS of DDQ10-2(3rd harmonic in 20-400Hz: about 43dB on average)
RELATED DOWNLOADS:
- THD&HARMONICS(ZIP format)
- DDQ10-2 Dimension File(CAD format PDF format)
- DDQ Installation Guide(PDF format)
