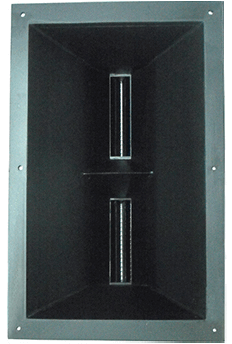

CQ76-2H Ribbon Horn Loudspeaker

2*76mm*18mm diaphragm dimension

Features:

• Unique Patented Design
• Accurate piston motion
• Frequency range 700Hz ~ 20000Hz
• Flat response 800 ~ 16000Hz +/-2dB
• Practical crossover 700Hz or higher
• Sensitivity 104dB @ 1 W / 1 m
• THD 700Hz~15000Hz < 1%
• Rated power 60VA
  (1500~15000Hz sine wave 3-minutes test)

Download:

• Product Data
• Curves
• CQ76-2H Faceplate（CAD format）
• CQ76-2H Cabinet Manual(CAD format)
